Recently, PowerPi launched a C100CC fast-charging cable solution that supports PD3.2 SPR AVS. It has the ability to recognize and handshake with PD3.2 SPR AVS, allowing negotiation on the iPhone 17 according to AVS standards, bringing a fast-charging experience and temperature control close to the official one. Simply put, it enables chargers that don’t support PD3.2 SPR AVS to work with it through this cable.
-5.jfif?w=1200&h=800)

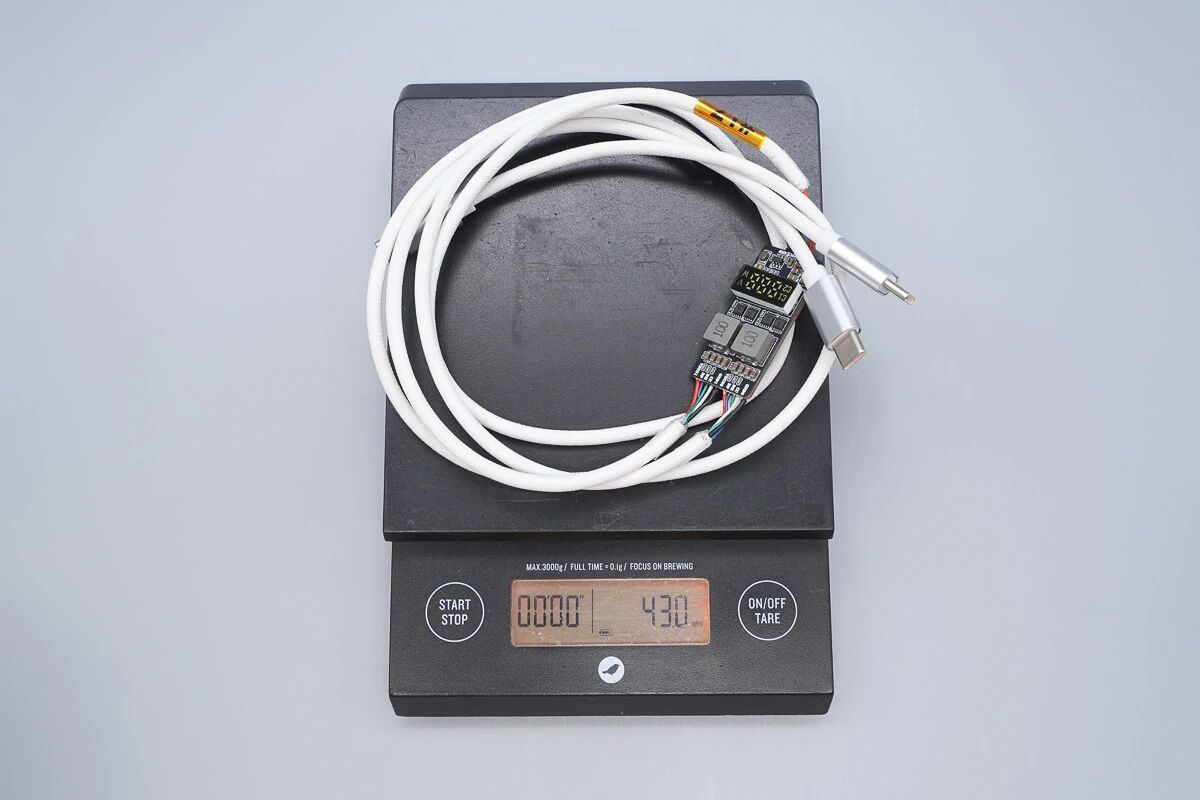

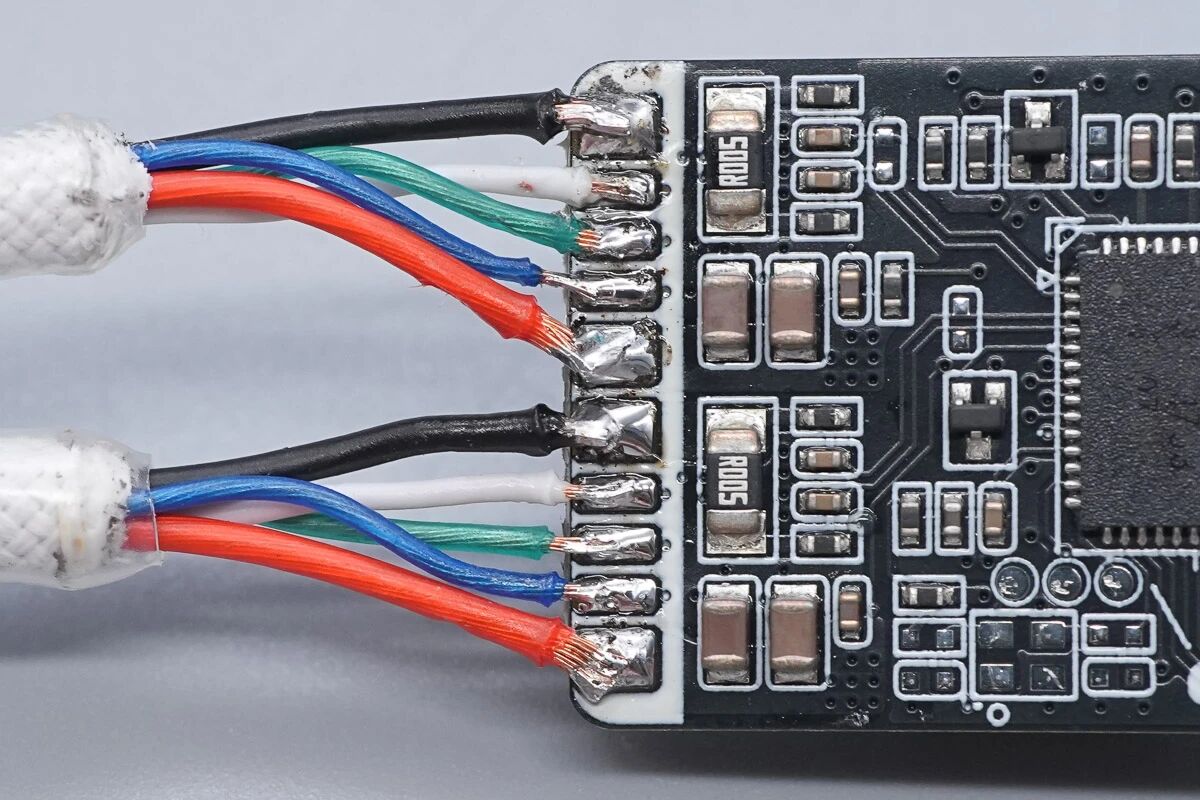

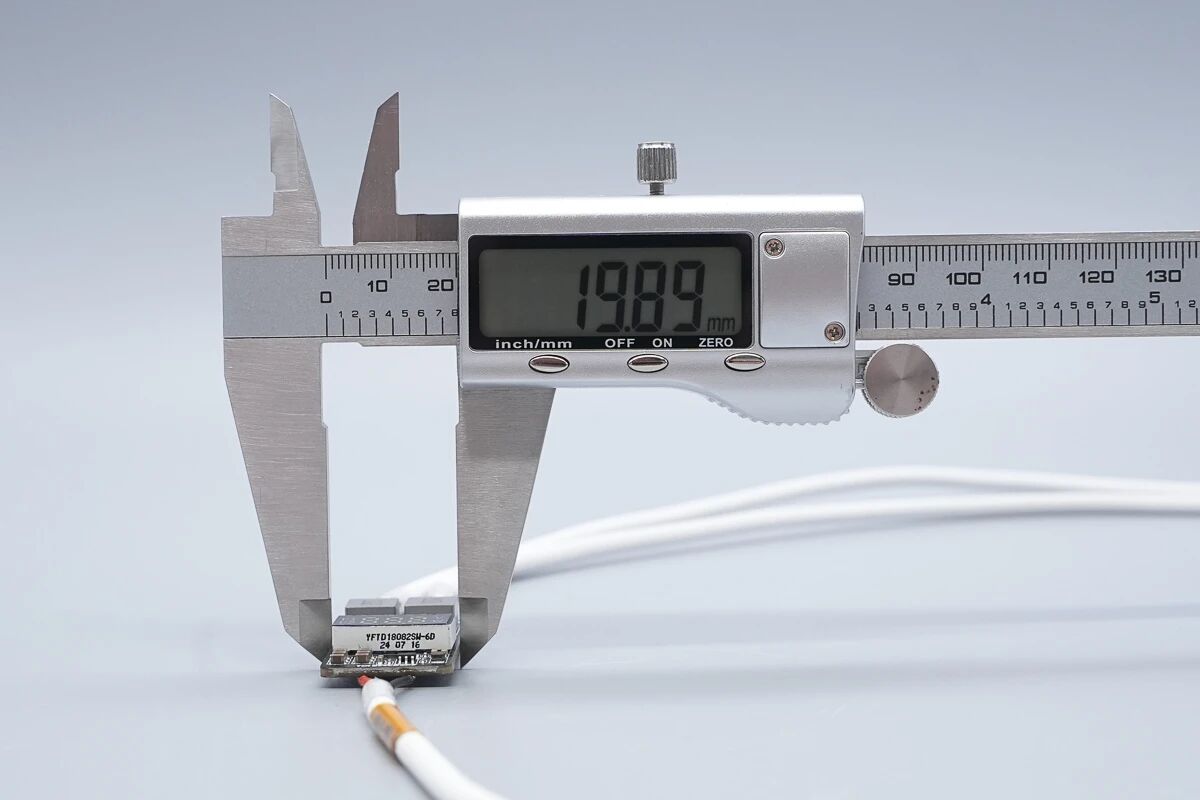

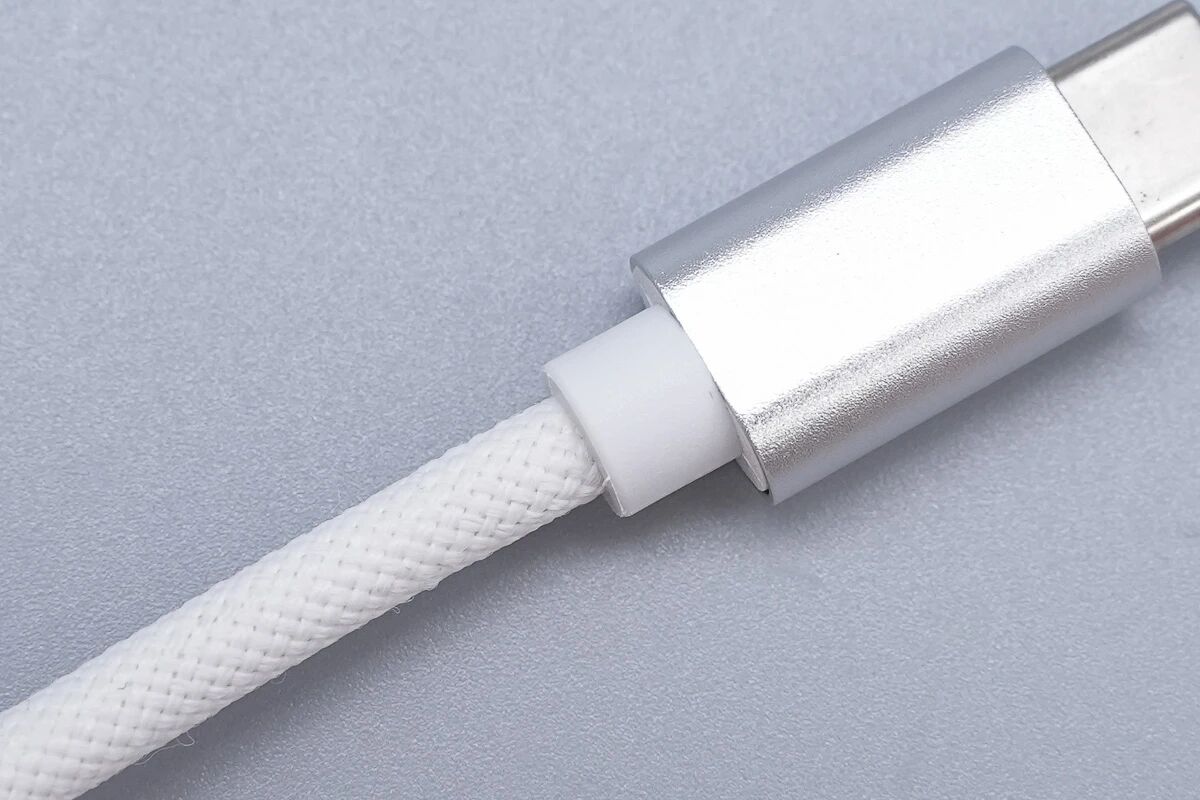

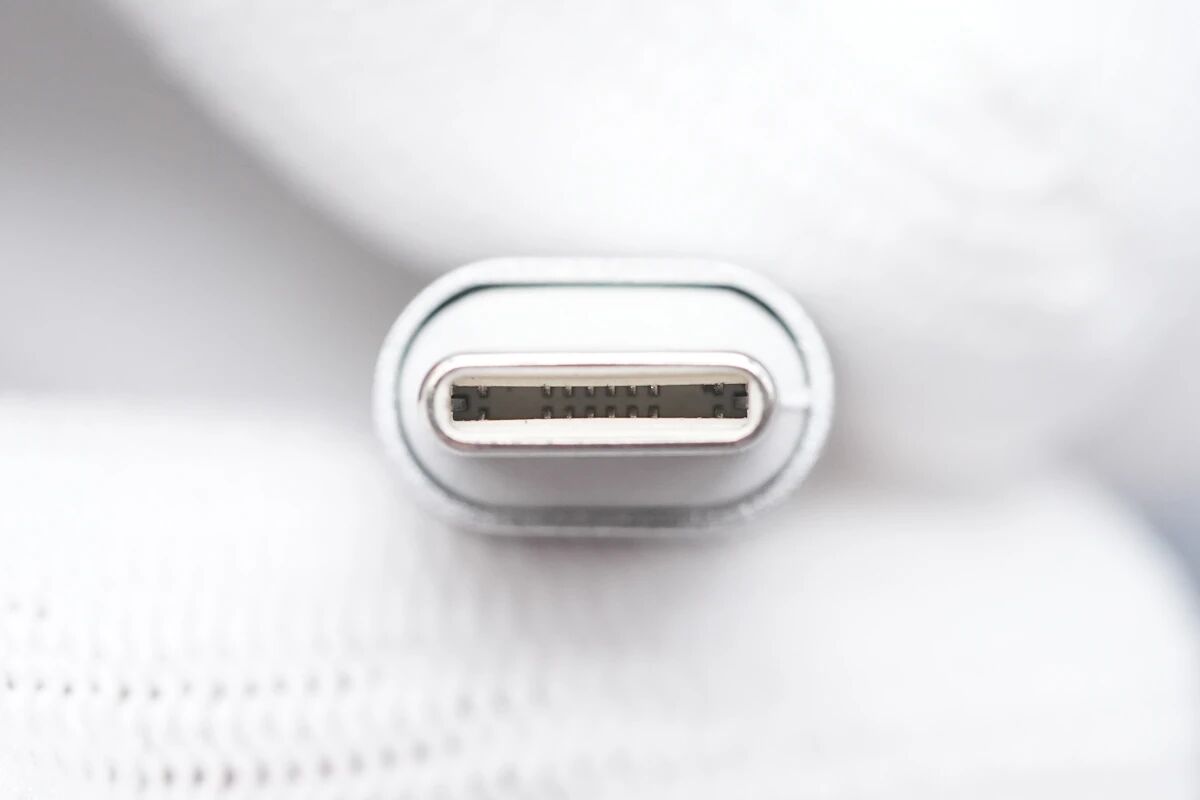

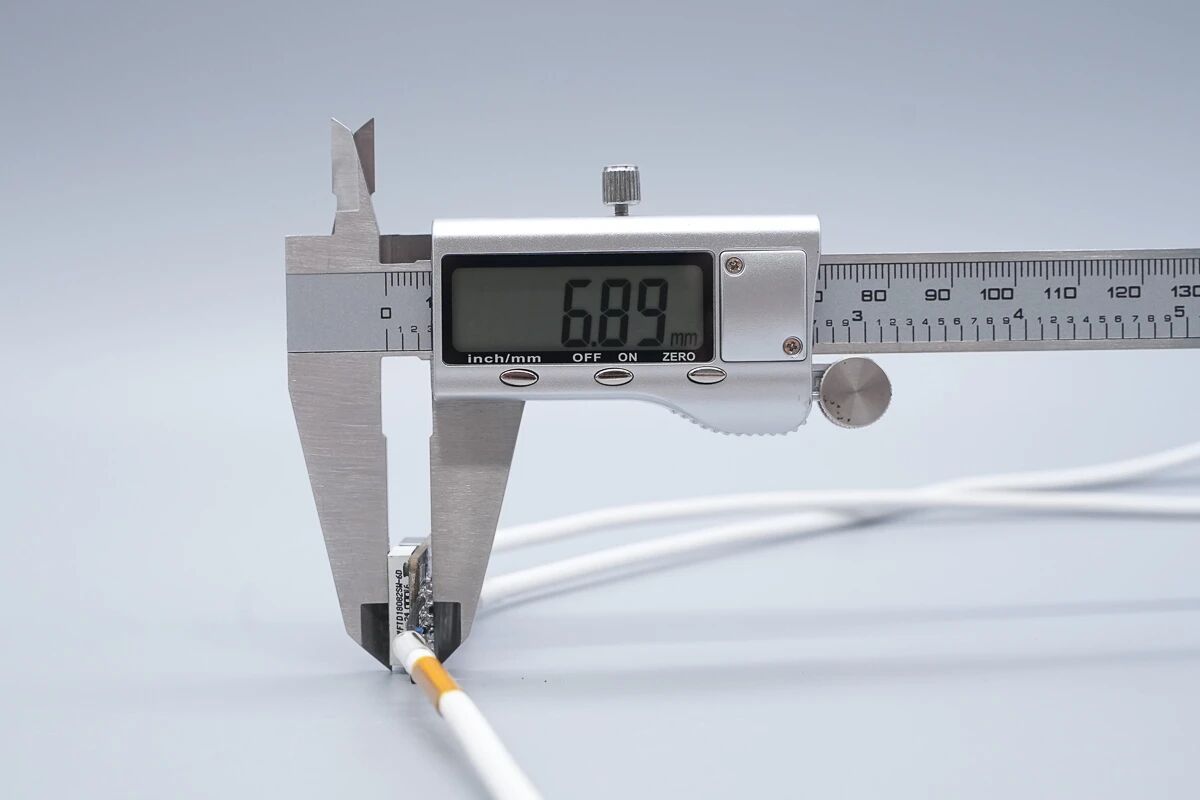

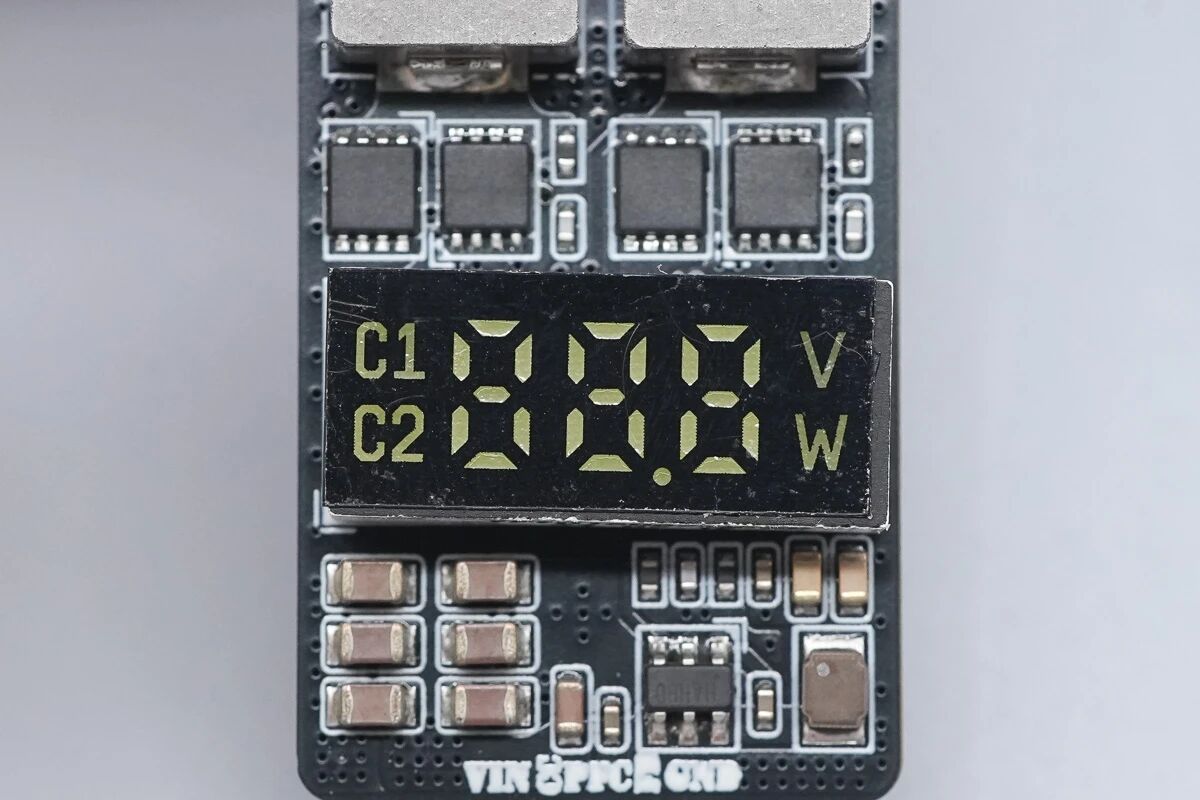

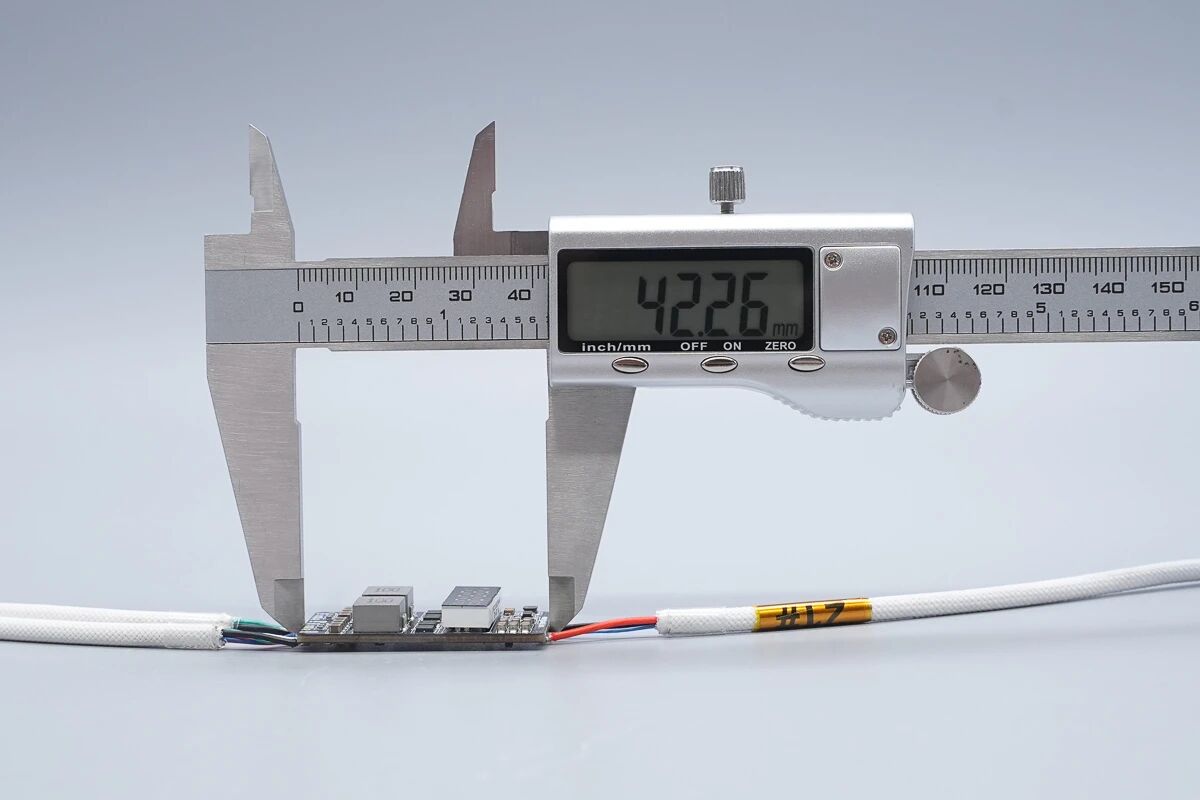

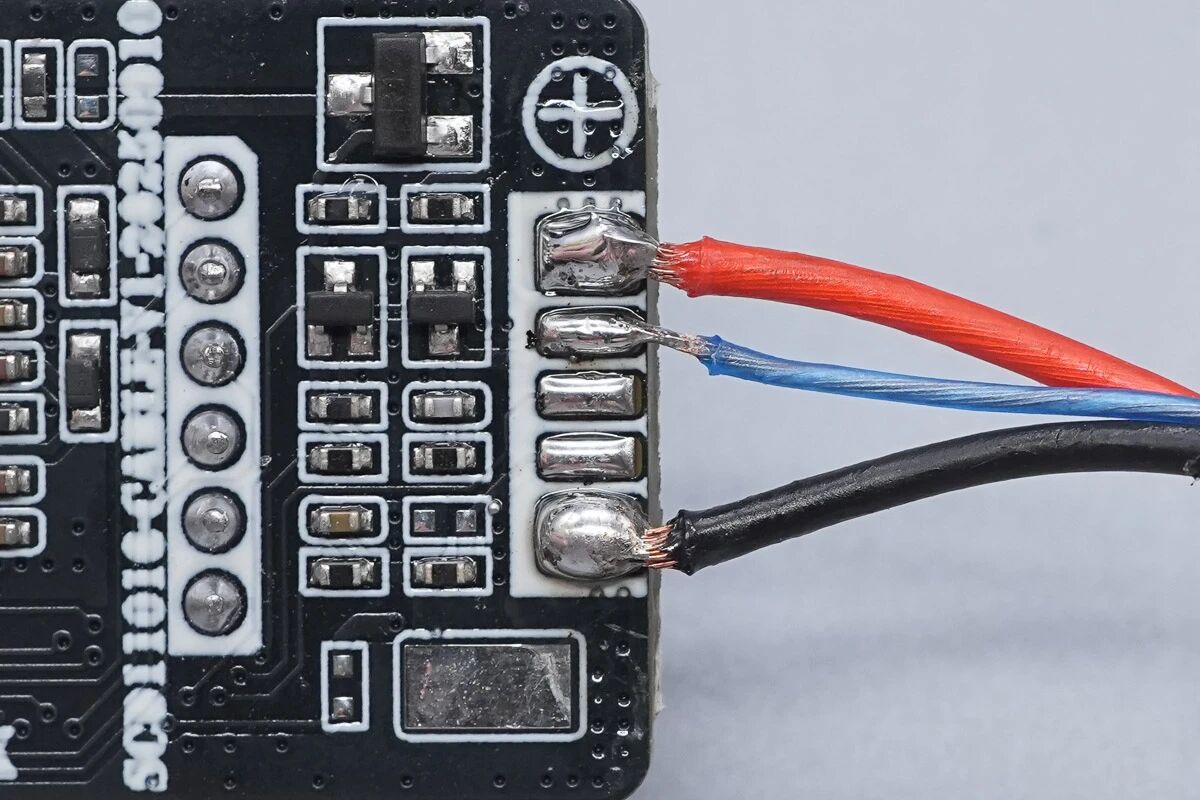

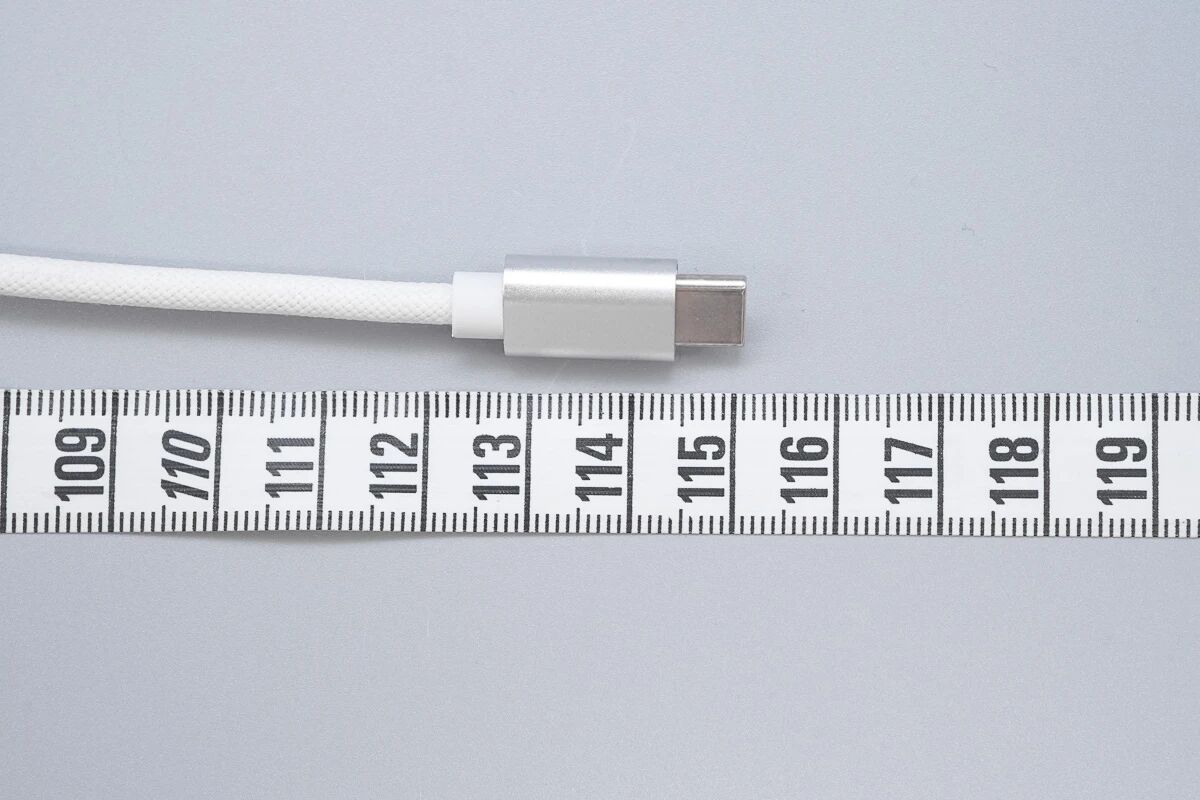

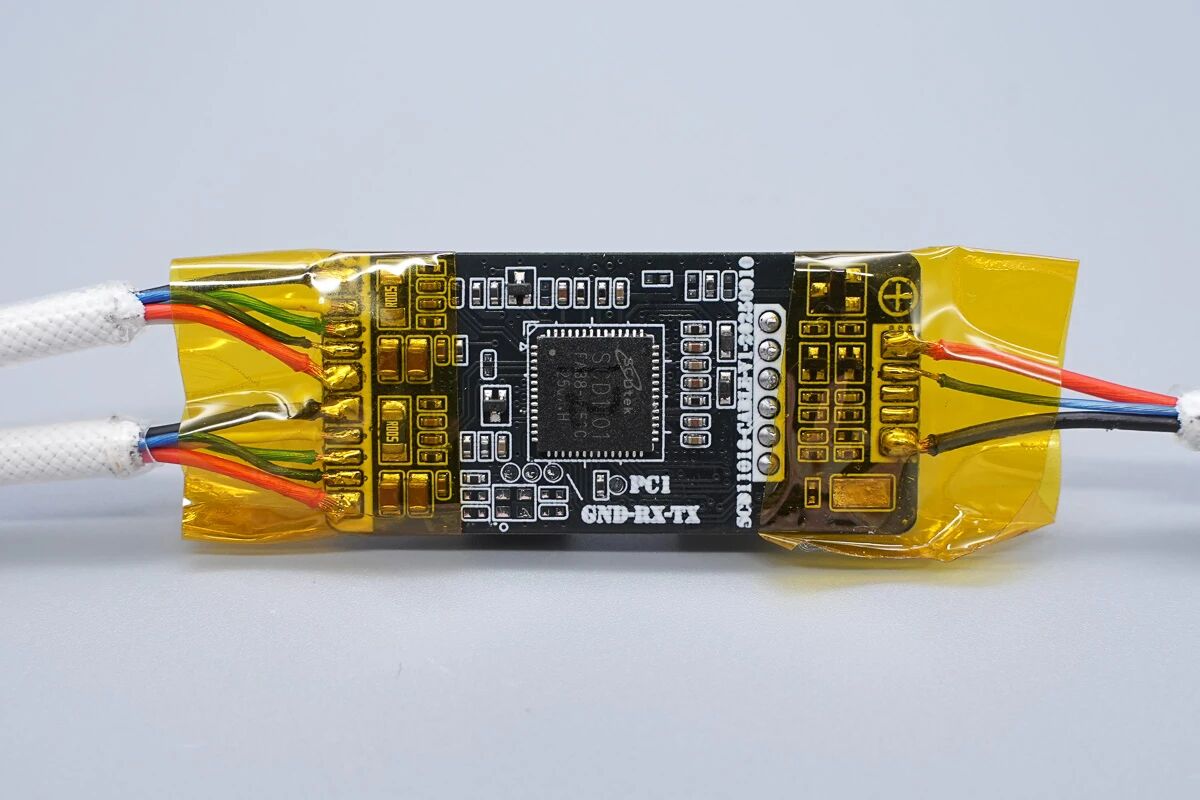

The PowerPi C100CC dual-output PD3.2 digital display fast-charging cable features a pure white high-density braided exterior. The cable is thick yet flexible, with USB-C male connectors on all ends. The input end has a metal casing with a step-style reinforcement at the tail, while both output branches share the same design. The tested cable length is about 115cm, with a total weight of 43g. The central PCBA small board (SCD11016 module) measures 42.26×19.89×6.89mm and integrates a digital display.
-3.jfif?w=1200&h=800)
-2.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-0.jfif?w=1200&h=800)
-0.jfif?w=1200&h=800)
.jfif?w=1200&h=800)
.jfif?w=1200&h=800)

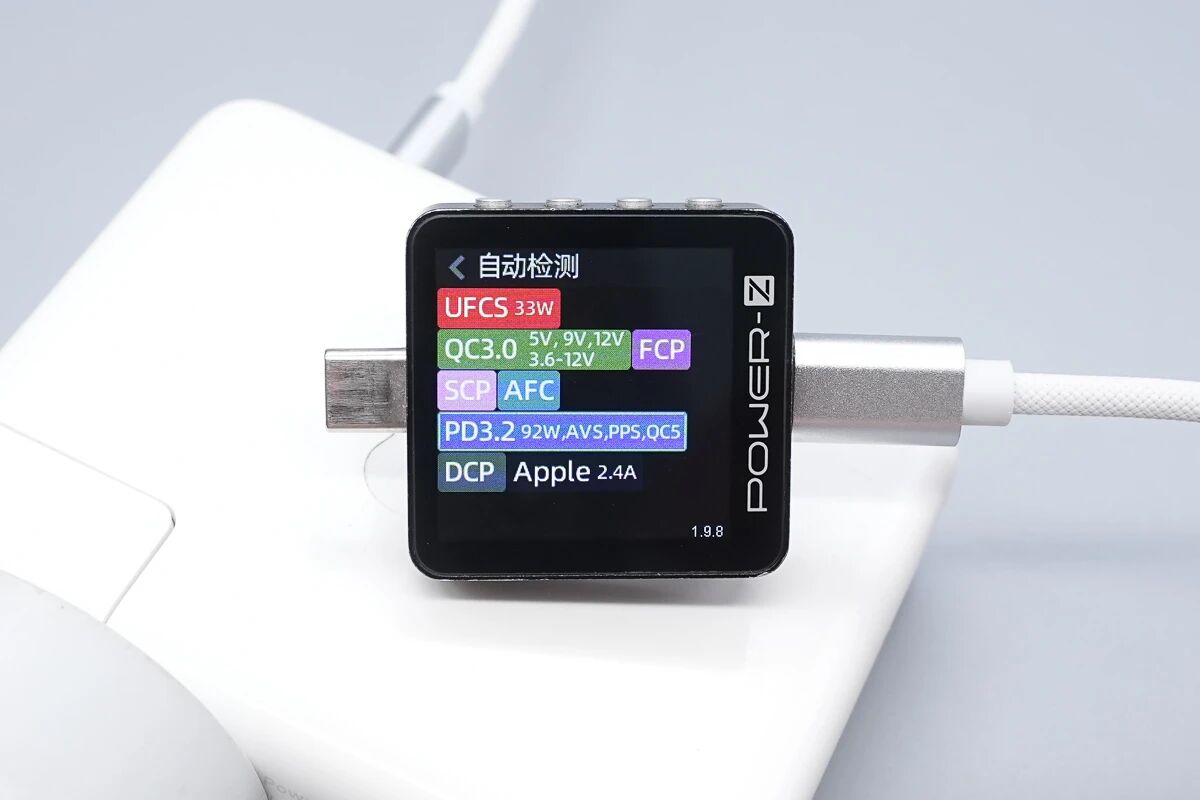

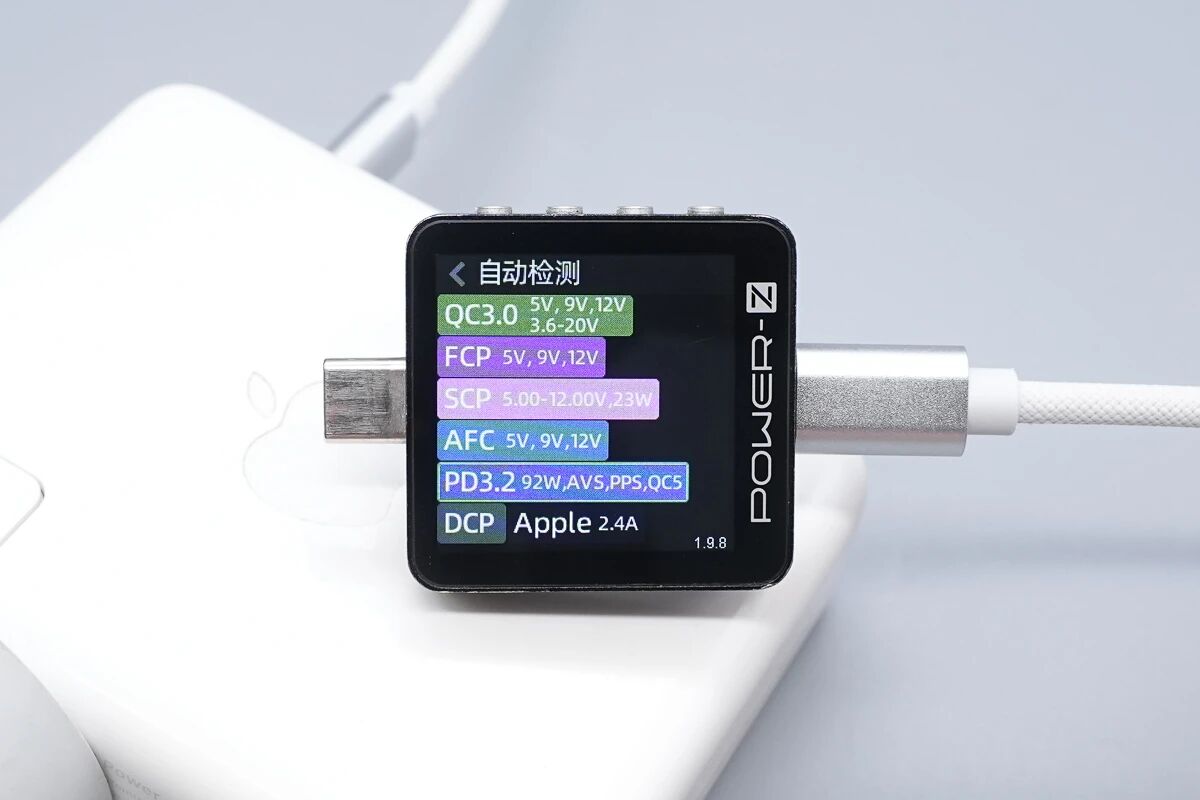

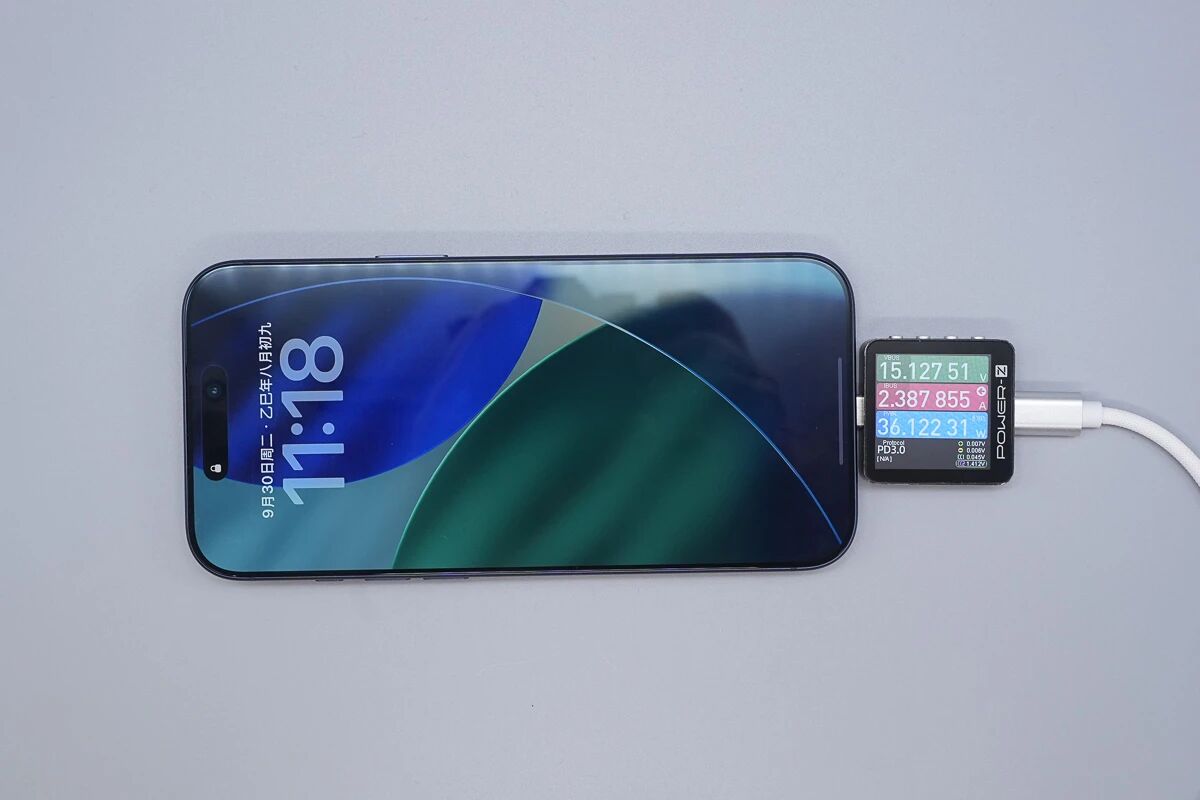

In terms of performance, both output ports (C1 and C2) support PD3.2, QC3.0, and other fast-charging protocols, with C1 also compatible with UFCSp6. PDO includes five fixed levels from 5V/3A to 20V/4.6A, supporting PD3.2 SPR AVS and 5-20V/4.6A PPS; UFCS offers two levels: 3.4-5.5V/3A and 5.5-11V/3A. In actual tests with an iPhone 17 Pro Max (1% battery, iOS 26.0), charging power reached 36W, and the digital display module can sync real-time voltage and power data.
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)
-1.jfif?w=1200&h=800)

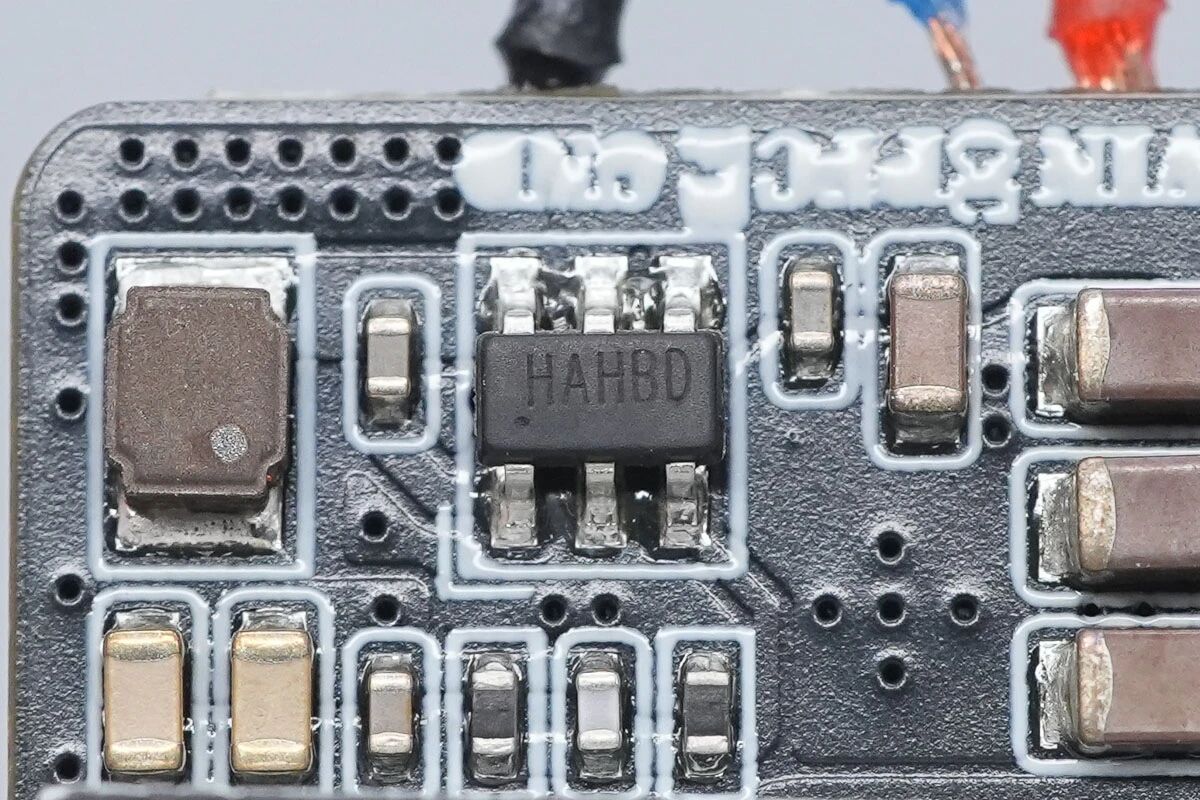

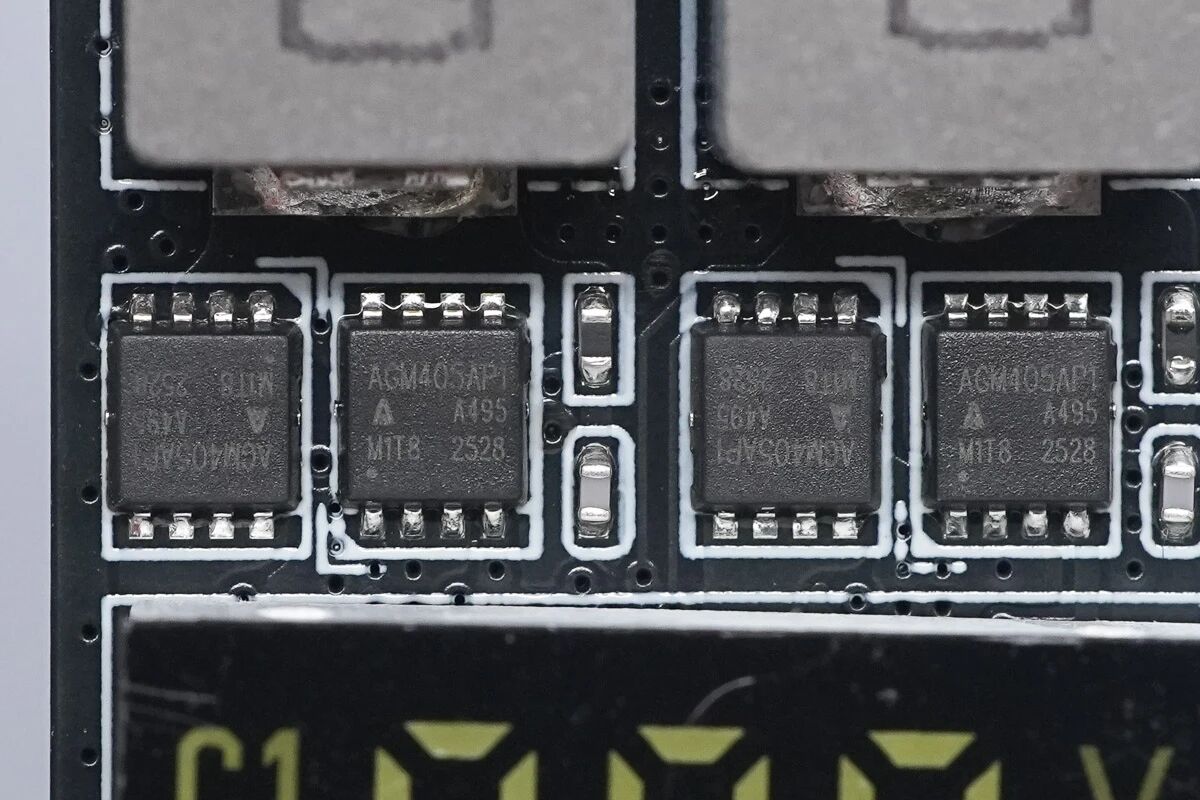

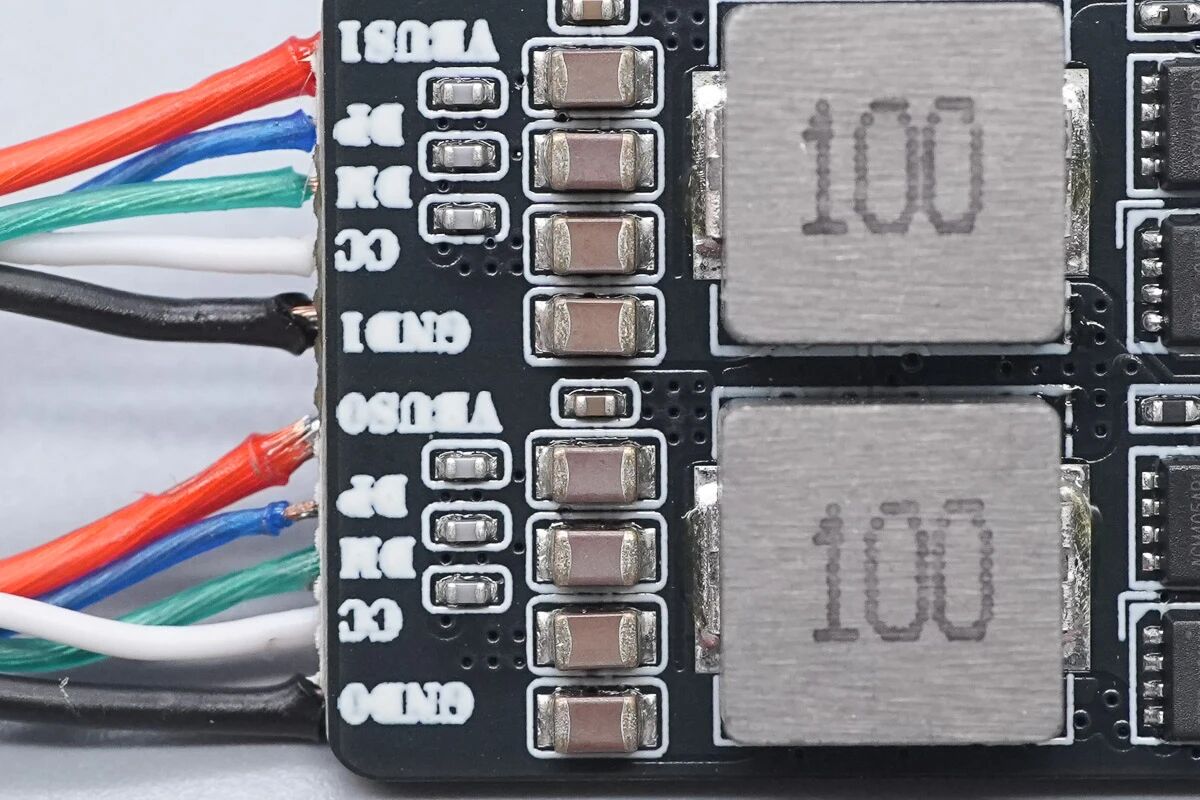

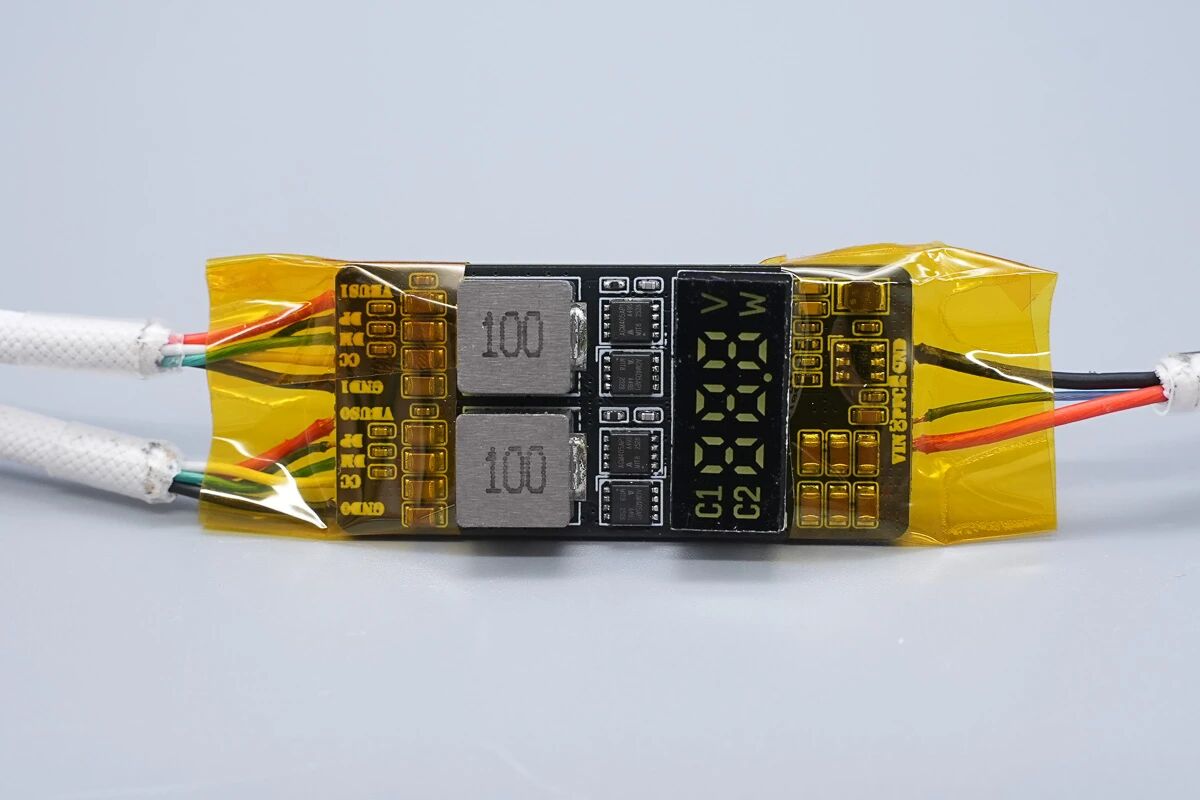

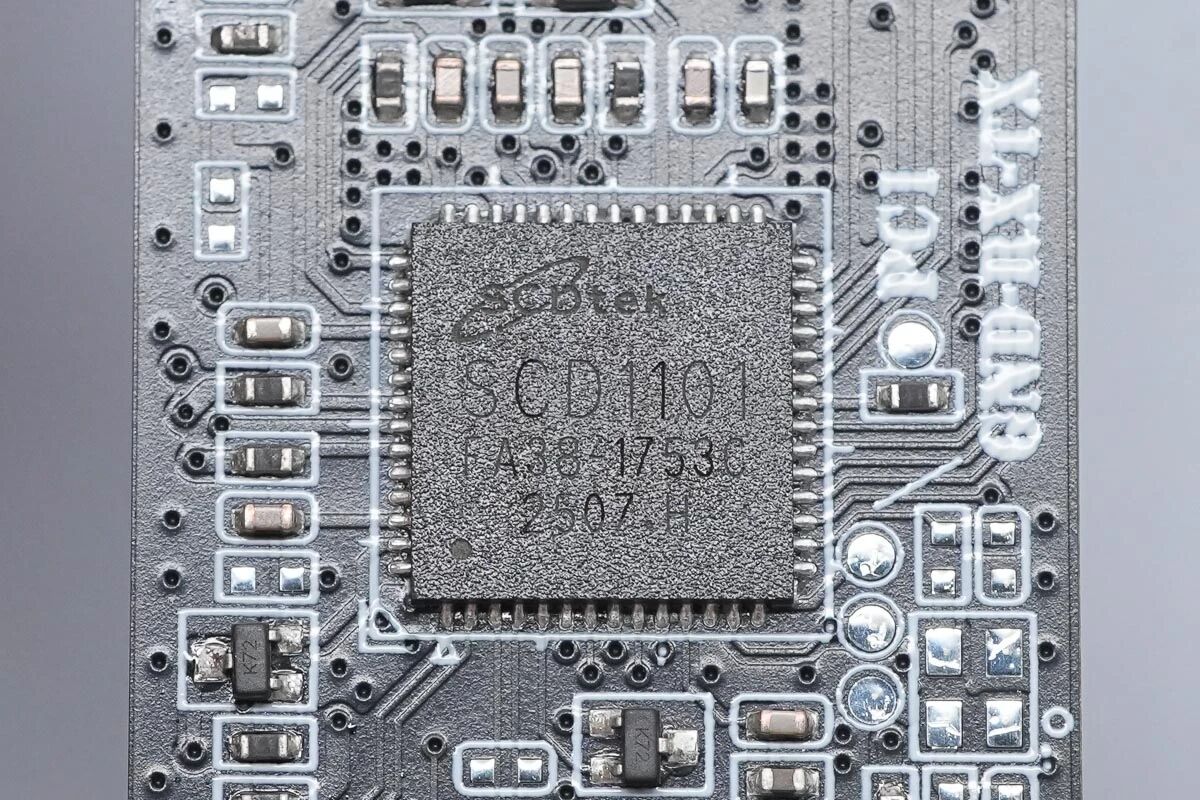

The core of the solution is the SCD1101P15 main control chip from Shichangding. This highly integrated SoC combines dual Type-C logic, multi-protocol support, and power management, enabling dual-port negotiation and recognition with a single chip, supporting 100W single-channel output and integrated multiple protection mechanisms. The module uses components like the Jiewate JW5018 synchronous buck converter (4.7V-40V input), Pulode integrated inductor, and Chinkongyuan AGM405A VBUS switch. This digital display fast-charging solution achieves a conversion efficiency of up to 98.8%, with less than 0.5V voltage drop at full load of 20V/5A.
